# Using R and a Raspberry Pi to automate social media data collection
### Frie Preu
### RLadies Tunis, 2021-02-20

---

# About me
- political scientist turned data scientist turned IT consultant / software developer... something else?
- useR since 2013/2015
- CorreAid volunteer since 2015, full-time since 2020

---
# About CorrelAid
- German(/European) Data4Good network with over 1500 volunteers
  - data4good projects with external partners
  - education: e.g. meetups, tidytuesday, workshops, annual conference, internal projects,..
  - dialogue with society
- excellent opportunity to try out things

---
# About this project
2017: new website with📊

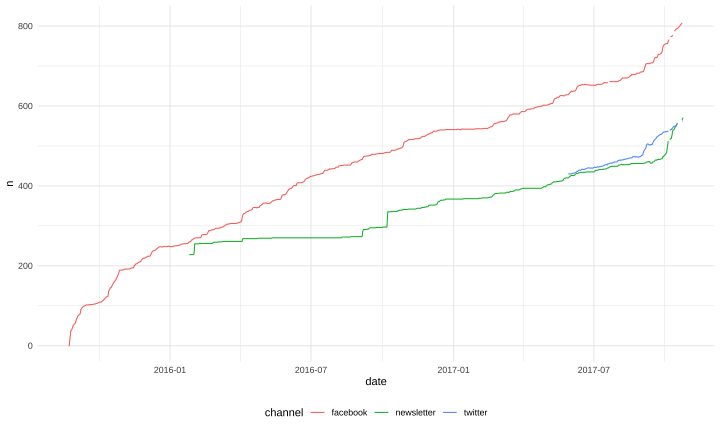

➡️ collect social media time series: facebook, twitter, mailchimp subscribers

![](index_files/figure-html/unnamed-chunk-1-1.png)

---
# Requirements for automated data collection
- 🤖 somewhere to run our code on
- 🕛 automatically execute code at regular intervals
- 💾 store data for later, easy access
- 💬 notify us if something is wrong

---

# 🤖: A Raspberry Pi
.pull-left[
<a title="Gareth Halfacree from Bradford, UK / CC BY-SA (https://creativecommons.org/licenses/by-sa/2.0)" href="https://commons.wikimedia.org/wiki/File:Raspberry_Pi_3_B%2B_(39906369025).png"><img width="512" alt="Raspberry Pi 3 B+ (39906369025)" src="https://upload.wikimedia.org/wikipedia/commons/thumb/9/97/Raspberry_Pi_3_B%2B_%2839906369025%29.png/512px-Raspberry_Pi_3_B%2B_%2839906369025%29.png"></a>

]

.pull-right[
- tiny and affordable computer, originally used for teaching
- large open-source community, many different projects
- 💸: ~10-110 Euro (with accessoires)
- Specs: 512MB - 8GB RAM, own OS (Raspian)
]

---

# 🕛: Cron jobs
> Cron is one of the most useful utility that you can find in any Unix-like operating system. It is used to schedule commands at a specific time. These scheduled commands or tasks are known as "Cron Jobs". ([Source](https://ostechnix.com/a-beginners-guide-to-cron-jobs))

![https://ostechnix.com/a-beginners-guide-to-cron-jobs](https://ostechnix.com/wp-content/uploads/2018/05/cron-job-format-1.png)

--
```r
50 23 * * * /usr/lib/R/bin/Rscript '/home/frie/correlaid-utils/correlaid-analytics/run.R'
```
.footnote[Note: Slide adapted from Alex Kapps presentation, see [here](https://docs.correlaid.org/correlcollection/open-online-data-meetup#how-to-store-thousands-of-shared-bike-locations-every-4-minutes-into-a-database). Image source: https://ostechnix.com/wp-content/uploads/2018/05/cron-job-format-1.png.]

---
# Project timeline & versions

.pull-left[
[mid 2017 - Oct. 2017](https://github.com/friep/correlaid-utils/tree/9f2506f90773e34f409be46f164bbbc16e8c7b9d)
<br>
<br>

[early 2018 - mid 2018 (?)](https://github.com/friep/correlaid-utils/tree/1ed5a5b4416beab950bcc1313ae6bc2f8fab1b22)
<br>
<br>

mid 2018 - late 2020

[late 2020](https://github.com/friep/correlaid-utils)
]
.pull-right[
Raspberry Pi + R + mlab, cf. [talk at OODM](https://youtu.be/tFRNBHqg_ZQ?t=2290)

AWS Lambda, Serverless & Python, cf. [talk at OODM](https://youtu.be/tFRNBHqg_ZQ?t=2413)

❌

Raspberry Pi + R + GitHub + GitHub actions

]

---
class: center, middle, inverse

# R and Raspberry Pi - 2017 version

---

# 2017 version: diagram

<img src="img/r_v1.png" width="1003" />

---
# 2017 version: summary
- 🤖 Raspberry Pi
- 🕛 Cron
- 💾 mlab
- 💬 ❌

### Problems
  - one big, messy R script
  - authentication details in text files checked into (private) GitHub (⚠️)
  - code quality ...

---
class: center, middle, inverse

# 2018: Python + AWS Lambda + Serverless

---

# Dezember 2017 Frie
🧑💻

[https://www.codecentric.de](https://www.codecentric.de)

---
# 2018 version: diagram

---

# 2018 version: What is AWS Lambda?
> AWS Lambda is an event-driven, serverless computing platform provided by Amazon as a part of Amazon Web Services. It is a computing service that runs code in response to events and automatically manages the computing resources required by that code.
[...]
> The purpose of Lambda, as compared to AWS EC2, is to simplify building smaller, on-demand applications [...] (([Wikipedia](https://en.wikipedia.org/wiki/AWS_Lambda))

- *event-driven*: it only runs responding to an **event** - the event can be a cronjob 👀

- *serverless*: underlying servers are **automatically** started + stopped by AWS (-> RIP fripi)

--
- *smaller, on-demand applications*: those are called **functions**

--
- payment per execution -> free / very cheap!

---
# 2018: AWS Lambda + Python

```bash
correlaid-analytics
├── daily.py
├── deploy-analytics.sh
├── every_monday.py
├── package-lock.json
├── requirements.txt
├── serverless.yml
└── setup.sh
```
---

# 2018 version: serverless

The [serverless](https://serverless.com) framework allows to define Lambda *functions* in a yml file (`serverless.yml`) and makes deployment to AWS very easy.

```yml
functions:
  daily_correlaid_analytics:
    handler: daily.get_correlaid_data
    events:
      - schedule:
          rate: cron(56 22 * * ? *)
```

Deployment with:
```bash
serverless deploy -v
```

---
# 2018 summary
- 🤖 AWS Lamdba (runs on AWS)
- 🕛 Cron
- 💾 hosted MySQL
- 💬 AWS Lambda alerts

---

class: center, middle, inverse

# R and Raspberry Pi - 2020 version

---

---

# 2020 version: Cron job

```r
## cronR job
## id:   daily_analytics
## tags:
## desc: Get daily CorrelAid Analytics
50 23 * * * cd '/home/frie/correlaid-utils/correlaid-analytics' && /usr/lib/R/bin/Rscript '/home/frie/correlaid-utils/correlaid-analytics/run.R'  > '/home/frie/correlaid-utils/correlaid-analytics/run.log' 2>&1
```

set up with the very helpful {[cronR](https://github.com/bnosac/cronR)} 📦

### run.R

```r
library(here)
print("==============================")
print(Sys.time())
source(here::here("correlaid-analytics/01_get_daily_analytics.R"))
source(here::here("correlaid-analytics/02_git.R"))
```

---

# 2020 version: files
```r
correlaid-analytics/
├── 01_get_daily_analytics.R
├── 02_git.R
├── cron.R
├── data
│ └── all_daily.csv
├── run.log
└── run.R
```
[01_get_daily_analytics.R](https://github.com/friep/correlaid-utils/blob/main/correlaid-analytics/01_get_daily_analytics.R)

---
# 2020 version: smcounts 📦

```r
library(smcounts)
smcounts::collect_data
```

```
## function (slack = TRUE, facebook = TRUE, twitter = TRUE, mailchimp = TRUE)
## {
##     df <- tibble::tibble(date = c(), platform = c(), n = c())
##     if (slack) {
##         slack_df <- ca_slack()
##         df <- rbind(df, slack_df)
##     }
##     if (facebook) {
##         facebook_df <- ca_facebook()
##         df <- rbind(df, facebook_df)
##     }
##     if (twitter) {
##         twitter_df <- ca_twitter()
##         df <- rbind(df, twitter_df)
##     }
##     if (mailchimp) {
##         mailchimp_df <- ca_newsletter()
##         df <- rbind(df, mailchimp_df)
##     }
##     return(df)
## }
## <bytecode: 0x7ff213720b60>
## <environment: namespace:smcounts>
```
---
# smcounts 📦
- abstracts data collection functionality --> can be reused in other contexts
- define dependencies via DESCRIPTION file
- easy installation from [GitHub](https://github.com/friep/smcounts) (https://github.com/friep/smcounts)
- uses environment variables (standard way to store API keys etc.)

---
# 2020 version 💾: Git
### 02_git.R

```r
# gert (https://docs.ropensci.org/gert/index.html)
library(gert)
gert::git_pull()
print(gert::git_status())
gert::git_add("correlaid-analytics/data/all_daily.csv")
gert::git_commit(message = "🤖 CRON - update daily data", author = git_signature("raspi3", "raspi3@pr130.dev"))
gert::git_push()
```

```r
ca_counts <- readr::read_csv("https://raw.githubusercontent.com/friep/correlaid-utils/main/correlaid-analytics/data/all_daily.csv")
```

```
##
## ── Column specification ────────────────────────────────────────────────────────
## cols(
##   date = col_date(format = ""),
##   platform = col_character(),
##   n = col_double()
## )
```

---
# 2020 version: 💬 GitHub Action
- CI/CD tool (continuous integration, continuous deployment) to define *workflows* in yml files
- typical use case: run checks on R Packages (e.g. [dplyr](https://github.com/tidyverse/ggplot2/actions?query=workflow%3AR-CMD-check)), build websites
- different kinds of triggers: push, pull request, cron job (👀)

### correlaid-utils workflow
- runs every morning to check whether a commit has been made to `all_daily.csv` in last 24 hours
  - if yes: ✅
  - if no: ❌ -> workflow fails and GitHub sends email
- [yml file](https://github.com/friep/correlaid-utils/blob/main/.github/workflows/notify_on_failure.yml)
- [workflow runs](https://github.com/friep/correlaid-utils/actions)

-> works for the case when the raspberry pi is offline. does not catch [other cases](https://github.com/friep/correlaid-utils/issues/11)!

---
# 2021 version: Bonus 📊
- knit small website with interactive graphs
- https://friep.github.io/correlaid-utils
- does not work on raspberry pi 3 because of old version (3.5)
-> instead use GitHub Actions for this

---
# 2020 version: summary
- 🤖 Raspberry Pi
- 🕛 Cron
- 💾 GitHub
- 💬 GitHub Actions

--
### 2020 version vs. 2017 version
- ✅ better decoupling through smcounts package
- ✅ more stability
- 🤔 git as storage option & github action
- 👎 better error handling
- 👎 tests!!

---
class: center, inverse, middle

# Alternatives & Summary

---
# Alternatives
#### Server 🤖
- Virtual machines on AWS, Azure, Google Cloud
- specialized services from AWS, Azure, ...
- GitHub Actions or other CI/CD services (?!)

#### Storage 💾
- a proper database
  - local
  - in the cloud (e.g. [AWS RDS free tier](https://aws.amazon.com/rds/free/?nc1=h_ls), [elephantsql](https://www.elephantsql.com))
- file storage for csv file (e.g. free AWS S3)

#### Notifications 💬
- make built-in cron emailing functionality work on Raspberry Pi
- monitoring services on AWS etc. (e.g. AWS SNS)

---
# Summary

- Things you can learn: git, cron jobs, ssh, scp, basics of networking, command line, bash scripting,   to write code that works not only on your machine...

- Buy a Raspberry Pi, if...
  - ... you want to get more experience with virtual machines / "the cloud" etc. but you feel like you need something in between
  - ... you have a use case (and 2-3 other use cases once you "graduate" to the cloud)!

- Don't buy one if...
  - ... you'll have to work with cloud services soon anyway
  - ... you don't have the time / nerves to work without RStudio / non-interactively
  - ... you have project ideas that require complex architectures / more computing resources / new packages

---
# Thanks for coming!

### Links
- [Slides](https://talks.pr130.dev/2020-11-24_rladies_bucharest_raspberrypi/index.html)
- [correlaid-utils Repository](https://github.com/friep/correlaid-utils) with a (hopefully) helpful README
- [smcounts](https://github.com/friep/smcounts) R Package
- [talk at CorrelAid Open Online Data Meetup](https://youtu.be/tFRNBHqg_ZQ?t=1966)
